Common Intents

An intent allows you to start an activity in another app by describing a simple action you'd like to perform (such as "view a map" or "take a picture") in an Intent object. This type of intent is called an implicit intent because it does not specify the app component to start, but instead specifies an action and provides some data with which to perform the action.

When you call startActivity() or startActivityForResult() and pass it an implicit intent, the system resolves the intent to an app that can handle the intent and starts its corresponding Activity. If there's more than one app that can handle the intent, the system presents the user with a dialog to pick which app to use.

This page describes several implicit intents that you can use to perform common actions, organized by the type of app that handles the intent. Each section also shows how you can create an intent filter to advertise your app's ability to perform the same action.

Caution: If there are no apps on the device that can receive the implicit intent, your app will crash when it calls startActivity(). To first verify that an app exists to receive the intent, call resolveActivity() on your Intent object. If the result is non-null, there is at least one app that can handle the intent and it's safe to call startActivity(). If the result is null, you should not use the intent and, if possible, you should disable the feature that invokes the intent.

If you're not familiar with how to create intents or intent filters, you should first read Intents and Intent Filters.

To learn how to fire the intents listed on this page from your development host, see Verify Intents with the Android Debug Bridge.

Google Now

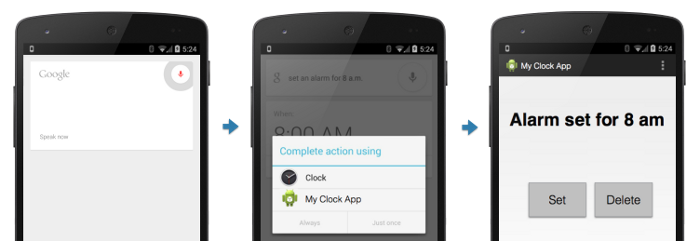

Google Now fires some of the intents listed on this page in response to voice commands. For more information, see Intents Fired by Google Now.

Alarm Clock

Create an alarm

Google Now

  • "set an alarm for 7 am"

To create a new alarm, use the ACTION_SET_ALARM action and specify alarm details such as the time and message using extras defined below.

Note: Only the hour, minutes, and message extras are available in Android 2.3 (API level 9) and higher. The other extras were added in later versions of the platform.

Action
ACTION_SET_ALARM
Data URI
None
MIME Type
None
Extras
EXTRA_HOUR
The hour for the alarm.
EXTRA_MINUTES
The minutes for the alarm.
EXTRA_MESSAGE
A custom message to identify the alarm.
EXTRA_DAYS
An ArrayList including each week day on which this alarm should be repeated. Each day must be declared with an integer from the Calendar class such as MONDAY.

For a one-time alarm, do not specify this extra.

EXTRA_RINGTONE
A content: URI specifying a ringtone to use with the alarm, or VALUE_RINGTONE_SILENT for no ringtone.

To use the default ringtone, do not specify this extra.

EXTRA_VIBRATE
A boolean specifying whether to vibrate for this alarm.
EXTRA_SKIP_UI
A boolean specifying whether the responding app should skip its UI when setting the alarm. If true, the app should bypass any confirmation UI and simply set the specified alarm.

Example intent:

public void createAlarm(String message, int hour, int minutes) {
    Intent intent = new Intent(AlarmClock.ACTION_SET_ALARM)
            .putExtra(AlarmClock.EXTRA_MESSAGE, message)
            .putExtra(AlarmClock.EXTRA_HOUR, hour)
            .putExtra(AlarmClock.EXTRA_MINUTES, minutes);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}
Note:

In order to invoke the ACTION_SET_ALARM intent, your app must have the SET_ALARM permission:

<uses-permission android:name="com.android.alarm.permission.SET_ALARM" />

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="android.intent.action.SET_ALARM" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Create a timer

Google Now

  • "set timer for 5 minutes"

To create a countdown timer, use the ACTION_SET_TIMER action and specify timer details such as the duration using extras defined below.

Note: This intent was added in Android 4.4 (API level 19).

Action
ACTION_SET_TIMER
Data URI
None
MIME Type
None
Extras
EXTRA_LENGTH
The length of the timer in seconds.
EXTRA_MESSAGE
A custom message to identify the timer.
EXTRA_SKIP_UI
A boolean specifying whether the responding app should skip its UI when setting the timer. If true, the app should bypass any confirmation UI and simply start the specified timer.

Example intent:

public void startTimer(String message, int seconds) {
    Intent intent = new Intent(AlarmClock.ACTION_SET_TIMER)
            .putExtra(AlarmClock.EXTRA_MESSAGE, message)
            .putExtra(AlarmClock.EXTRA_LENGTH, seconds)
            .putExtra(AlarmClock.EXTRA_SKIP_UI, true);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}
Note:

In order to invoke the ACTION_SET_TIMER intent, your app must have the SET_ALARM permission:

<uses-permission android:name="com.android.alarm.permission.SET_ALARM" />

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="android.intent.action.SET_TIMER" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Show all alarms

To show the list of alarms, use the ACTION_SHOW_ALARMS action.

Although not many apps will invoke this intent (it's primarily used by system apps), any app that behaves as an alarm clock should implement this intent filter and respond by showing the list of current alarms.

Note: This intent was added in Android 4.4 (API level 19).

Action
ACTION_SHOW_ALARMS
Data URI
None
MIME Type
None

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="android.intent.action.SHOW_ALARMS" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Calendar

Add a calendar event

To add a new event to the user's calendar, use the ACTION_INSERT action and specify the data URI with Events.CONTENT_URI. You can then specify various event details using extras defined below.

Action
ACTION_INSERT
Data URI
Events.CONTENT_URI
MIME Type
"vnd.android.cursor.dir/event"
Extras
EXTRA_EVENT_ALL_DAY
A boolean specifying whether this is an all-day event.
EXTRA_EVENT_BEGIN_TIME
The start time of the event (milliseconds since epoch).
EXTRA_EVENT_END_TIME
The end time of the event (milliseconds since epoch).
TITLE
The event title.
DESCRIPTION
The event description.
EVENT_LOCATION
The event location.
EXTRA_EMAIL
A comma-separated list of email addresses that specify the invitees.

Many more event details can be specified using the constants defined in the CalendarContract.EventsColumns class.

Example intent:

public void addEvent(String title, String location, Calendar begin, Calendar end) {
    Intent intent = new Intent(Intent.ACTION_INSERT)
            .setData(Events.CONTENT_URI)
            .putExtra(Events.TITLE, title)
            .putExtra(Events.EVENT_LOCATION, location)
            .putExtra(CalendarContract.EXTRA_EVENT_BEGIN_TIME, begin)
            .putExtra(CalendarContract.EXTRA_EVENT_END_TIME, end);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="android.intent.action.INSERT" />
        <data android:mimeType="vnd.android.cursor.dir/event" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Camera

Capture a picture or video and return it

To open a camera app and receive the resulting photo or video, use the ACTION_IMAGE_CAPTURE or ACTION_VIDEO_CAPTURE action. Also specify the URI location where you'd like the camera to save the photo or video, in the EXTRA_OUTPUT extra.

Action
ACTION_IMAGE_CAPTURE or
ACTION_VIDEO_CAPTURE
Data URI Scheme
None
MIME Type
None
Extras
EXTRA_OUTPUT
The URI location where the camera app should save the photo or video file (as a Uri object).

When the camera app successfully returns focus to your activity (your app receives the onActivityResult() callback), you can access the photo or video at the URI you specified with the EXTRA_OUTPUT value.

Note: When you use ACTION_IMAGE_CAPTURE to capture a photo, the camera may also return a downscaled copy (a thumbnail) of the photo in the result Intent, saved as a Bitmap in an extra field named "data".

Example intent:

static final int REQUEST_IMAGE_CAPTURE = 1;
static final Uri mLocationForPhotos;

public void capturePhoto(String targetFilename) {
    Intent intent = new Intent(MediaStore.ACTION_IMAGE_CAPTURE);
    intent.putExtra(MediaStore.EXTRA_OUTPUT,
            Uri.withAppendedPath(mLocationForPhotos, targetFilename);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivityForResult(intent, REQUEST_IMAGE_CAPTURE);
    }
}

@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
    if (requestCode == REQUEST_IMAGE_CAPTURE && resultCode == RESULT_OK) {
        Bitmap thumbnail = data.getParcelable("data");
        // Do other work with full size photo saved in mLocationForPhotos
        ...
    }
}

For more information about how to use this intent to capture a photo, including how to create an appropriate Uri for the output location, read Taking Photos Simply or Taking Videos Simply.

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="android.media.action.IMAGE_CAPTURE" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

When handling this intent, your activity should check for the EXTRA_OUTPUT extra in the incoming Intent, then save the captured image or video at the location specified by that extra and call setResult() with an Intent that includes a compressed thumbnail in an extra named "data".

Start a camera app in still image mode

Google Now

  • "take a picture"

To open a camera app in still image mode, use the INTENT_ACTION_STILL_IMAGE_CAMERA action.

Action
INTENT_ACTION_STILL_IMAGE_CAMERA
Data URI Scheme
None
MIME Type
None
Extras
None

Example intent:

public void capturePhoto() {
    Intent intent = new Intent(MediaStore.INTENT_ACTION_STILL_IMAGE_CAMERA);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivityForResult(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="android.media.action.STILL_IMAGE_CAMERA" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Start a camera app in video mode

Google Now

  • "record a video"

To open a camera app in video mode, use the INTENT_ACTION_VIDEO_CAMERA action.

Action
INTENT_ACTION_VIDEO_CAMERA
Data URI Scheme
None
MIME Type
None
Extras
None

Example intent:

public void capturePhoto() {
    Intent intent = new Intent(MediaStore.INTENT_ACTION_VIDEO_CAMERA);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivityForResult(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="android.media.action.VIDEO_CAMERA" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Contacts/People App

Select a contact

To have the user select a contact and provide your app access to all the contact information, use the ACTION_PICK action and specify the MIME type to Contacts.CONTENT_TYPE.

The result Intent delivered to your onActivityResult() callback contains the content: URI pointing to the selected contact. The response grants your app temporary permissions to read that contact using the Contacts Provider API even if your app does not include the READ_CONTACTS permission.

Tip: If you need access to only a specific piece of contact information, such as a phone number or email address, instead see the next section about how to select specific contact data.

Action
ACTION_PICK
Data URI Scheme
None
MIME Type
Contacts.CONTENT_TYPE

Example intent:

static final int REQUEST_SELECT_CONTACT = 1;

public void selectContact() {
    Intent intent = new Intent(Intent.ACTION_PICK);
    intent.setType(ContactsContract.Contacts.CONTENT_TYPE);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivityForResult(intent, REQUEST_SELECT_CONTACT);
    }
}

@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
    if (requestCode == REQUEST_SELECT_CONTACT && resultCode == RESULT_OK) {
        Uri contactUri = data.getData();
        // Do something with the selected contact at contactUri
        ...
    }
}

For information about how to retrieve contact details once you have the contact URI, read Retrieving Details for a Contact. Remember, when you retrieve the contact URI with the above intent, you do not need the READ_CONTACTS permission to read details for that contact.

Select specific contact data

To have the user select a specific piece of information from a contact, such as a phone number, email address, or other data type, use the ACTION_PICK action and specify the MIME type to one of the content types listed below, such as CommonDataKinds.Phone.CONTENT_TYPE to get the contact's phone number.

If you need to retrieve only one type of data from a contact, this technique with a CONTENT_TYPE from the ContactsContract.CommonDataKinds classes is more efficient than using the Contacts.CONTENT_TYPE (as shown in the previous section) because the result provides you direct access to the desired data without requiring you to perform a more complex query to Contacts Provider.

The result Intent delivered to your onActivityResult() callback contains the content: URI pointing to the selected contact data. The response grants your app temporary permissions to read that contact data even if your app does not include the READ_CONTACTS permission.

Action
ACTION_PICK
Data URI Scheme
None
MIME Type
CommonDataKinds.Phone.CONTENT_TYPE
Pick from contacts with a phone number.
CommonDataKinds.Email.CONTENT_TYPE
Pick from contacts with an email address.
CommonDataKinds.StructuredPostal.CONTENT_TYPE
Pick from contacts with a postal address.

Or one of many other CONTENT_TYPE values under ContactsContract.

Example intent:

static final int REQUEST_SELECT_PHONE_NUMBER = 1;

public void selectContact() {
    // Start an activity for the user to pick a phone number from contacts
    Intent intent = new Intent(Intent.ACTION_PICK);
    intent.setType(CommonDataKinds.Phone.CONTENT_TYPE);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivityForResult(intent, REQUEST_SELECT_PHONE_NUMBER);
    }
}

@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
    if (requestCode == REQUEST_SELECT_PHONE_NUMBER && resultCode == RESULT_OK) {
        // Get the URI and query the content provider for the phone number
        Uri contactUri = data.getData();
        String[] projection = new String[]{CommonDataKinds.Phone.NUMBER};
        Cursor cursor = getContentResolver().query(contactUri, projection,
                null, null, null);
        // If the cursor returned is valid, get the phone number
        if (cursor != null && cursor.moveToFirst()) {
            int numberIndex = cursor.getColumnIndex(CommonDataKinds.Phone.NUMBER);
            String number = cursor.getString(numberIndex);
            // Do something with the phone number
            ...
        }
    }
}

View a contact

To display the details for a known contact, use the ACTION_VIEW action and specify the contact with a content: URI as the intent data.

There are primarily two ways to initially retrieve the contact's URI:

  • Use the contact URI returned by the ACTION_PICK, shown in the previous section (this approach does not require any app permissions).
  • Access the list of all contacts directly, as described in Retrieving a List of Contacts (this approach requires the READ_CONTACTS permission).
Action
ACTION_VIEW
Data URI Scheme
content:<URI>
MIME Type
None. The type is inferred from contact URI.

Example intent:

public void viewContact(Uri contactUri) {
    Intent intent = new Intent(Intent.ACTION_VIEW, contactUri);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Edit an existing contact

To edit a known contact, use the ACTION_EDIT action, specify the contact with a content: URI as the intent data, and include any known contact information in extras specified by constants in ContactsContract.Intents.Insert.

There are primarily two ways to initially retrieve the contact URI:

  • Use the contact URI returned by the ACTION_PICK, shown in the previous section (this approach does not require any app permissions).
  • Access the list of all contacts directly, as described in Retrieving a List of Contacts (this approach requires the READ_CONTACTS permission).
Action
ACTION_EDIT
Data URI Scheme
content:<URI>
MIME Type
The type is inferred from contact URI.
Extras
One or more of the extras defined in ContactsContract.Intents.Insert so you can populate fields of the contact details.

Example intent:

public void editContact(Uri contactUri, String email) {
    Intent intent = new Intent(Intent.ACTION_EDIT);
    intent.setData(contactUri);
    intent.putExtra(Intents.Insert.EMAIL, email);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

For more information about how to edit a contact, read Modifying Contacts Using Intents.

Insert a contact

To insert a new contact, use the ACTION_INSERT action, specify Contacts.CONTENT_TYPE as the MIME type, and include any known contact information in extras specified by constants in ContactsContract.Intents.Insert.

Action
ACTION_INSERT
Data URI Scheme
None
MIME Type
Contacts.CONTENT_TYPE
Extras
One or more of the extras defined in ContactsContract.Intents.Insert.

Example intent:

public void insertContact(String name, String email) {
    Intent intent = new Intent(Intent.ACTION_INSERT);
    intent.setType(Contacts.CONTENT_TYPE);
    intent.putExtra(Intents.Insert.NAME, name);
    intent.putExtra(Intents.Insert.EMAIL, email);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

For more information about how to insert a contact, read Modifying Contacts Using Intents.

Email

Compose an email with optional attachments

To compose an email, use one of the below actions based on whether you'll include attachments, and include email details such as the recipient and subject using the extra keys listed below.

Action
ACTION_SENDTO (for no attachment) or
ACTION_SEND (for one attachment) or
ACTION_SEND_MULTIPLE (for multiple attachments)
Data URI Scheme
None
MIME Type
PLAIN_TEXT_TYPE ("text/plain")
"*/*"
Extras
Intent.EXTRA_EMAIL
A string array of all "To" recipient email addresses.
Intent.EXTRA_CC
A string array of all "CC" recipient email addresses.
Intent.EXTRA_BCC
A string array of all "BCC" recipient email addresses.
Intent.EXTRA_SUBJECT
A string with the email subject.
Intent.EXTRA_TEXT
A string with the body of the email.
Intent.EXTRA_STREAM
A Uri pointing to the attachment. If using the ACTION_SEND_MULTIPLE action, this should instead be an ArrayList containing multiple Uri objects.

Example intent:

public void composeEmail(String[] addresses, String subject, Uri attachment) {
    Intent intent = new Intent(Intent.ACTION_SEND);
    intent.setType("*/*");
    intent.putExtra(Intent.EXTRA_EMAIL, addresses);
    intent.putExtra(Intent.EXTRA_SUBJECT, subject);
    intent.putExtra(Intent.EXTRA_STREAM, attachment);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

If you want to ensure that your intent is handled only by an email app (and not other text messaging or social apps), then use the ACTION_SENDTO action and include the "mailto:" data scheme. For example:

public void composeEmail(String[] addresses, String subject) {
    Intent intent = new Intent(Intent.ACTION_SENDTO);
    intent.setData(Uri.parse("mailto:")); // only email apps should handle this
    intent.putExtra(Intent.EXTRA_EMAIL, addresses);
    intent.putExtra(Intent.EXTRA_SUBJECT, subject);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="android.intent.action.SEND" />
        <data android:type="*/*" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
    <intent-filter>
        <action android:name="android.intent.action.SENDTO" />
        <data android:scheme="mailto" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

File Storage

Retrieve a specific type of file

To request that the user select a file such as a document or photo and return a reference to your app, use the ACTION_GET_CONTENT action and specify your desired MIME type. The file reference returned to your app is transient to your activity's current lifecycle, so if you want to access it later you must import a copy that you can read later. This intent also allows the user to create a new file in the process (for example, instead of selecting an existing photo, the user can capture a new photo with the camera).

The result intent delivered to your onActivityResult() method includes data with a URI pointing to the file. The URI could be anything, such as an http: URI, file: URI, or content: URI. However, if you'd like to restrict selectable files to only those that are accessible from a content provider (a content: URI) and that are available as a file stream with openFileDescriptor(), you should add the CATEGORY_OPENABLE category to your intent.

On Android 4.3 (API level 18) and higher, you can also allow the user to select multiple files by adding EXTRA_ALLOW_MULTIPLE to the intent, set to true. You can then access each of the selected files in a ClipData object returned by getClipData().

Action
ACTION_GET_CONTENT
Data URI Scheme
None
MIME Type
The MIME type corresponding to the file type the user should select.
Extras
EXTRA_ALLOW_MULTIPLE
A boolean declaring whether the user can select more than one file at a time.
EXTRA_LOCAL_ONLY
A boolean that declares whether the returned file must be available directly from the device, rather than requiring a download from a remote service.
Category (optional)
CATEGORY_OPENABLE
To return only "openable" files that can be represented as a file stream with openFileDescriptor().

Example intent to get a photo:

static final int REQUEST_IMAGE_GET = 1;

public void selectImage() {
    Intent intent = new Intent(Intent.ACTION_GET_CONTENT);
    intent.setType("image/*");
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivityForResult(intent, REQUEST_IMAGE_GET);
    }
}

@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
    if (requestCode == REQUEST_IMAGE_GET && resultCode == RESULT_OK) {
        Bitmap thumbnail = data.getParcelable("data");
        Uri fullPhotoUri = data.getData();
        // Do work with photo saved at fullPhotoUri
        ...
    }
}

Example intent filter to return a photo:

<activity ...>
    <intent-filter>
        <action android:name="android.intent.action.GET_CONTENT" />
        <data android:type="image/*" />
        <category android:name="android.intent.category.DEFAULT" />
        <!-- The OPENABLE category declares that the returned file is accessible
             from a content provider that supports OpenableColumns
             and ContentResolver.openFileDescriptor() -->
        <category android:name="android.intent.category.OPENABLE" />
    </intent-filter>
</activity>

Open a specific type of file

Instead of retrieving a copy of a file that you must import to your app (by using the ACTION_GET_CONTENT action), when running on Android 4.4 or higher, you can instead request to open a file that's managed by another app by using the ACTION_OPEN_DOCUMENT action and specifying a MIME type. To also allow the user to instead create a new document that your app can write to, use the ACTION_CREATE_DOCUMENT action instead. For example, instead of selecting from existing PDF documents, the ACTION_CREATE_DOCUMENT intent allows users to select where they'd like to create a new document (within another app that manages the document's storage)—your app then receives the URI location of where it can write the new document.

Whereas the intent delivered to your onActivityResult() method from the ACTION_GET_CONTENT action may return a URI of any type, the result intent from ACTION_OPEN_DOCUMENT and ACTION_CREATE_DOCUMENT always specify the chosen file as a content: URI that's backed by a DocumentsProvider. You can open the file with openFileDescriptor() and query its details using columns from DocumentsContract.Document.

The returned URI grants your app long-term read access to the file (also possibly with write access). So the ACTION_OPEN_DOCUMENT action is particularly useful (instead of using ACTION_GET_CONTENT) when you want to read an existing file without making a copy into your app, or when you want to open and edit a file in place.

You can also allow the user to select multiple files by adding EXTRA_ALLOW_MULTIPLE to the intent, set to true. If the user selects just one item, then you can retrieve the item from getData(). If the user selects more than one item, then getData() returns null and you must instead retrieve each item from a ClipData object that is returned by getClipData().

Note: Your intent must specify a MIME type and must declare the CATEGORY_OPENABLE category. If appropriate, you can specify more than one MIME type by adding an array of MIME types with the EXTRA_MIME_TYPES extra—if you do so, you must set the primary MIME type in setType() to "*/*".

Action
ACTION_OPEN_DOCUMENT or
ACTION_CREATE_DOCUMENT
Data URI Scheme
None
MIME Type
The MIME type corresponding to the file type the user should select.
Extras
EXTRA_MIME_TYPES
An array of MIME types corresponding to the types of files your app is requesting. When you use this extra, you must set the primary MIME type in setType() to "*/*".
EXTRA_ALLOW_MULTIPLE
A boolean that declares whether the user can select more than one file at a time.
EXTRA_TITLE
For use with ACTION_CREATE_DOCUMENT to specify an initial file name.
EXTRA_LOCAL_ONLY
A boolean that declares whether the returned file must be available directly from the device, rather than requiring a download from a remote service.
Category
CATEGORY_OPENABLE
To return only "openable" files that can be represented as a file stream with openFileDescriptor().

Example intent to get a photo:

static final int REQUEST_IMAGE_OPEN = 1;

public void selectImage() {
    Intent intent = new Intent(Intent.ACTION_OPEN_DOCUMENT);
    intent.setType("image/*");
    intent.addCategory(Intent.CATEGORY_OPENABLE);
    // Only the system receives the ACTION_OPEN_DOCUMENT, so no need to test.
    startActivityForResult(intent, REQUEST_IMAGE_OPEN);
}

@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
    if (requestCode == REQUEST_IMAGE_OPEN && resultCode == RESULT_OK) {
        Uri fullPhotoUri = data.getData();
        // Do work with full size photo saved at fullPhotoUri
        ...
    }
}

Third party apps cannot actually respond to an intent with the ACTION_OPEN_DOCUMENT action. Instead, the system receives this intent and displays all the files available from various apps in a unified user interface.

To provide your app's files in this UI and allow other apps to open them, you must implement a DocumentsProvider and include an intent filter for PROVIDER_INTERFACE ("android.content.action.DOCUMENTS_PROVIDER"). For example:

<provider ...
    android:grantUriPermissions="true"
    android:exported="true"
    android:permission="android.permission.MANAGE_DOCUMENTS">
    <intent-filter>
        <action android:name="android.content.action.DOCUMENTS_PROVIDER" />
    </intent-filter>
</provider>

For more information about how to make the files managed by your app openable from other apps, read the Storage Access Framework guide.

Fitness

Start/Stop a bike ride

Google Now

  • "start cycling"
  • "start my bike ride"
  • "stop cycling"

To track a bike ride, use the ACTION_TRACK action with the "vnd.google.fitness.activity/biking" MIME type and set the EXTRA_STATUS extra to STATUS_ACTIVE when starting and to STATUS_COMPLETED when stopping.

Action
ACTION_TRACK
Data URI
None
MIME Type
"vnd.google.fitness.activity/biking"
Extras
EXTRA_STATUS
A string with the value STATUS_ACTIVE when starting and STATUS_COMPLETED when stopping.

Example intent:

public void startBikeRide() {
    Intent intent = new Intent(FitnessIntents.ACTION_TRACK)
            .setType("vnd.google.fitness.activity/biking")
            .putExtra(FitnessIntents.EXTRA_STATUS, FitnessIntents.STATUS_ACTIVE);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="vnd.google.fitness.TRACK" />
        <data android:mimeType="vnd.google.fitness.activity/biking" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Start/Stop a run

Google Now

  • "track my run"
  • "start running"
  • "stop running"

To track a run, use the ACTION_TRACK action with the "vnd.google.fitness.activity/running" MIME type and set the EXTRA_STATUS extra to STATUS_ACTIVE when starting and to STATUS_COMPLETED when stopping.

Action
ACTION_TRACK
Data URI
None
MIME Type
"vnd.google.fitness.activity/running"
Extras
EXTRA_STATUS
A string with the value STATUS_ACTIVE when starting and STATUS_COMPLETED when stopping.

Example intent:

public void startRun() {
    Intent intent = new Intent(FitnessIntents.ACTION_TRACK)
            .setType("vnd.google.fitness.activity/running")
            .putExtra(FitnessIntents.EXTRA_STATUS, FitnessIntents.STATUS_ACTIVE);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="vnd.google.fitness.TRACK" />
        <data android:mimeType="vnd.google.fitness.activity/running" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Start/Stop a workout

Google Now

  • "start a workout"
  • "track my workout"
  • "stop workout"

To track a workout, use the ACTION_TRACK action with the "vnd.google.fitness.activity/other" MIME type and set the EXTRA_STATUS extra to STATUS_ACTIVE when starting and to STATUS_COMPLETED when stopping.

Action
ACTION_TRACK
Data URI
None
MIME Type
"vnd.google.fitness.activity/other"
Extras
EXTRA_STATUS
A string with the value STATUS_ACTIVE when starting and STATUS_COMPLETED when stopping.

Example intent:

public void startWorkout() {
    Intent intent = new Intent(FitnessIntents.ACTION_TRACK)
            .setType("vnd.google.fitness.activity/other")
            .putExtra(FitnessIntents.EXTRA_STATUS, FitnessIntents.STATUS_ACTIVE);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="vnd.google.fitness.TRACK" />
        <data android:mimeType="vnd.google.fitness.activity/other" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Show heart rate

Google Now

  • "what's my heart rate?"
  • "what's my bpm?"

To show the user's heart rate, use the ACTION_VIEW action with the "vnd.google.fitness.data_type/com.google.heart_rate.bpm" MIME type.

Action
ACTION_VIEW
Data URI
None
MIME Type
"vnd.google.fitness.data_type/com.google.heart_rate.bpm"
Extras
None

Example intent:

public void showHeartRate() {
    Intent intent = new Intent(FitnessIntents.ACTION_VIEW)
            .setType("vnd.google.fitness.data_type/com.google.heart_rate.bpm");
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="vnd.google.fitness.VIEW" />
        <data android:mimeType="vnd.google.fitness.data_type/com.google.heart_rate.bpm" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Show step count

Google Now

  • "how many steps have I taken?"
  • "what's my step count?"

To show the user's step count, use the ACTION_VIEW action with the "vnd.google.fitness.data_type
/com.google.step_count
.cumulative"
MIME type.

Action
ACTION_VIEW
Data URI
None
MIME Type
"vnd.google.fitness.data_type/com.google.step_count.cumulative"
Extras
None

Example intent:

public void showStepCount() {
    Intent intent = new Intent(FitnessIntents.ACTION_VIEW)
            .setType("vnd.google.fitness.data_type/com.google.step_count.cumulative");
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="vnd.google.fitness.VIEW" />
        <data android:mimeType="vnd.google.fitness.data_type/com.google.step_count.cumulative" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Local Actions

Call a car

Google Now

  • "get me a taxi"
  • "call me a car"

(Android Wear only)

To call a taxi, use the ACTION_RESERVE_TAXI_RESERVATION action.

Note: Apps must ask for confirmation from the user before completing the action.

Action
ACTION_RESERVE_TAXI_RESERVATION
Data URI
None
MIME Type
None
Extras
None

Example intent:

public void callCar() {
    Intent intent = new Intent(ReserveIntents.ACTION_RESERVE_TAXI_RESERVATION);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="com.google.android.gms.actions.RESERVE_TAXI_RESERVATION" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Maps

Show a location on a map

To open a map, use the ACTION_VIEW action and specify the location information in the intent data with one of the schemes defined below.

Action
ACTION_VIEW
Data URI Scheme
geo:latitude,longitude
Show the map at the given longitude and latitude.

Example: "geo:47.6,-122.3"

geo:latitude,longitude?z=zoom
Show the map at the given longitude and latitude at a certain zoom level. A zoom level of 1 shows the whole Earth, centered at the given lat,lng. The highest (closest) zoom level is 23.

Example: "geo:47.6,-122.3?z=11"

geo:0,0?q=lat,lng(label)
Show the map at the given longitude and latitude with a string label.

Example: "geo:0,0?q=34.99,-106.61(Treasure)"

geo:0,0?q=my+street+address
Show the location for "my street address" (may be a specific address or location query).

Example: "geo:0,0?q=1600+Amphitheatre+Parkway%2C+CA"

Note: All strings passed in the geo URI must be encoded. For example, the string 1st & Pike, Seattle should become 1st%20%26%20Pike%2C%20Seattle. Spaces in the string can be encoded with %20 or replaced with the plus sign (+).

MIME Type
None

Example intent:

public void showMap(Uri geoLocation) {
    Intent intent = new Intent(Intent.ACTION_VIEW);
    intent.setData(geoLocation);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="android.intent.action.VIEW" />
        <data android:scheme="geo" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Music or Video

Play a media file

To play a music file, use the ACTION_VIEW action and specify the URI location of the file in the intent data.

Action
ACTION_VIEW
Data URI Scheme
file:<URI>
content:<URI>
http:<URL>
MIME Type
"audio/*"
"application/ogg"
"application/x-ogg"
"application/itunes"
Or any other that your app may require.

Example intent:

public void playMedia(Uri file) {
    Intent intent = new Intent(Intent.ACTION_VIEW);
    intent.setData(file);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="android.intent.action.VIEW" />
        <data android:type="audio/*" />
        <data android:type="application/ogg" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Play music based on a search query

Google Now

  • "play michael jackson billie jean"

To play music based on a search query, use the INTENT_ACTION_MEDIA_PLAY_FROM_SEARCH intent. An app may fire this intent in response to the user's voice command to play music. The receiving app for this intent performs a search within its inventory to match existing content to the given query and starts playing that content.

This intent should include the EXTRA_MEDIA_FOCUS string extra, which specifies the inteded search mode. For example, the search mode can specify whether the search is for an artist name or song name.

Action
INTENT_ACTION_MEDIA_PLAY_FROM_SEARCH
Data URI Scheme
None
MIME Type
None
Extras
MediaStore.EXTRA_MEDIA_FOCUS (required)

Indicates the search mode (whether the user is looking for a particular artist, album, song, or playlist). Most search modes take additional extras. For example, if the user is interested in listening to a particular song, the intent might have three additional extras: the song title, the artist, and the album. This intent supports the following search modes for each value of EXTRA_MEDIA_FOCUS:

Any - "vnd.android.cursor.item/*"

Play any music. The receiving app should play some music based on a smart choice, such as the last playlist the user listened to.

Additional extras:

  • QUERY (required) - An empty string. This extra is always provided for backward compatibility: existing apps that do not know about search modes can process this intent as an unstructured search.

Unstructured - "vnd.android.cursor.item/*"

Play a particular song, album or genre from an unstructured search query. Apps may generate an intent with this search mode when they can't identify the type of content the user wants to listen to. Apps should use more specific search modes when possible.

Additional extras:

  • QUERY (required) - A string that contains any combination of: the artist, the album, the song name, or the genre.

Genre - Audio.Genres.ENTRY_CONTENT_TYPE

Play music of a particular genre.

Additional extras:

  • "android.intent.extra.genre" (required) - The genre.
  • QUERY (required) - The genre. This extra is always provided for backward compatibility: existing apps that do not know about search modes can process this intent as an unstructured search.

Artist - Audio.Artists.ENTRY_CONTENT_TYPE

Play music from a particular artist.

Additional extras:

  • EXTRA_MEDIA_ARTIST (required) - The artist.
  • "android.intent.extra.genre" - The genre.
  • QUERY (required) - A string that contains any combination of the artist or the genre. This extra is always provided for backward compatibility: existing apps that do not know about search modes can process this intent as an unstructured search.

Album - Audio.Albums.ENTRY_CONTENT_TYPE

Play music from a particular album.

Additional extras:

  • EXTRA_MEDIA_ALBUM (required) - The album.
  • EXTRA_MEDIA_ARTIST - The artist.
  • "android.intent.extra.genre" - The genre.
  • QUERY (required) - A string that contains any combination of the album or the artist. This extra is always provided for backward compatibility: existing apps that do not know about search modes can process this intent as an unstructured search.

Song - "vnd.android.cursor.item/audio"

Play a particular song.

Additional extras:

  • EXTRA_MEDIA_ALBUM - The album.
  • EXTRA_MEDIA_ARTIST - The artist.
  • "android.intent.extra.genre" - The genre.
  • EXTRA_MEDIA_TITLE (required) - The song name.
  • QUERY (required) - A string that contains any combination of: the album, the artist, the genre, or the title. This extra is always provided for backward compatibility: existing apps that do not know about search modes can process this intent as an unstructured search.

Playlist - Audio.Playlists.ENTRY_CONTENT_TYPE

Play a particular playlist or a playlist that matches some criteria specified by additional extras.

Additional extras:

  • EXTRA_MEDIA_ALBUM - The album.
  • EXTRA_MEDIA_ARTIST - The artist.
  • "android.intent.extra.genre" - The genre.
  • "android.intent.extra.playlist" - The playlist.
  • EXTRA_MEDIA_TITLE - The song name that the playlist is based on.
  • QUERY (required) - A string that contains any combination of: the album, the artist, the genre, the playlist, or the title. This extra is always provided for backward compatibility: existing apps that do not know about search modes can process this intent as an unstructured search.

Example intent:

If the user wants to listen to music from a particular artist, a search app may generate the following intent:

public void playSearchArtist(String artist) {
    Intent intent = new Intent(MediaStore.INTENT_ACTION_MEDIA_PLAY_FROM_SEARCH);
    intent.putExtra(MediaStore.EXTRA_MEDIA_FOCUS,
                    MediaStore.Audio.Artists.ENTRY_CONTENT_TYPE);
    intent.putExtra(MediaStore.EXTRA_MEDIA_ARTIST, artist);
    intent.putExtra(SearchManager.QUERY, artist);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="android.media.action.MEDIA_PLAY_FROM_SEARCH" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

When handling this intent, your activity should check the value of the EXTRA_MEDIA_FOCUS extra in the incoming Intent to determine the search mode. Once your activity has identified the search mode, it should read the values of the additional extras for that particular search mode. With this information your app can then perform the search within its inventory to play the content that matches the search query. For example:

protected void onCreate(Bundle savedInstanceState) {
    ...
    Intent intent = this.getIntent();
    if (intent.getAction().compareTo(MediaStore.INTENT_ACTION_MEDIA_PLAY_FROM_SEARCH) == 0) {

        String mediaFocus = intent.getStringExtra(MediaStore.EXTRA_MEDIA_FOCUS);
        String query = intent.getStringExtra(SearchManager.QUERY);

        // Some of these extras may not be available depending on the search mode
        String album = intent.getStringExtra(MediaStore.EXTRA_MEDIA_ALBUM);
        String artist = intent.getStringExtra(MediaStore.EXTRA_MEDIA_ARTIST);
        String genre = intent.getStringExtra("android.intent.extra.genre");
        String playlist = intent.getStringExtra("android.intent.extra.playlist");
        String title = intent.getStringExtra(MediaStore.EXTRA_MEDIA_TITLE);

        // Determine the search mode and use the corresponding extras
        if (mediaFocus == null) {
            // 'Unstructured' search mode (backward compatible)
            playUnstructuredSearch(query);

        } else if (mediaFocus.compareTo("vnd.android.cursor.item/*") == 0) {
            if (query.isEmpty()) {
                // 'Any' search mode
                playResumeLastPlaylist();
            } else {
                // 'Unstructured' search mode
                playUnstructuredSearch(query);
            }

        } else if (mediaFocus.compareTo(MediaStore.Audio.Genres.ENTRY_CONTENT_TYPE) == 0) {
            // 'Genre' search mode
            playGenre(genre);

        } else if (mediaFocus.compareTo(MediaStore.Audio.Artists.ENTRY_CONTENT_TYPE) == 0) {
            // 'Artist' search mode
            playArtist(artist, genre);

        } else if (mediaFocus.compareTo(MediaStore.Audio.Albums.ENTRY_CONTENT_TYPE) == 0) {
            // 'Album' search mode
            playAlbum(album, artist);

        } else if (mediaFocus.compareTo("vnd.android.cursor.item/audio") == 0) {
            // 'Song' search mode
            playSong(album, artist, genre, title);

        } else if (mediaFocus.compareTo(MediaStore.Audio.Playlists.ENTRY_CONTENT_TYPE) == 0) {
            // 'Playlist' search mode
            playPlaylist(album, artist, genre, playlist, title);
        }
    }
}

Phone

Initiate a phone call

To open the phone app and dial a phone number, use the ACTION_DIAL action and specify a phone number using the URI scheme defined below. When the phone app opens, it displays the phone number but the user must press the Call button to begin the phone call.

Google Now

  • "call 555-5555"
  • "call bob"
  • "call voicemail"

To place a phone call directly, use the ACTION_CALL action and specify a phone number using the URI scheme defined below. When the phone app opens, it begins the phone call; the user does not need to press the Call button.

The ACTION_CALL action requires that you add the CALL_PHONE permission to your manifest file:

<uses-permission android:name="android.permission.CALL_PHONE" />
Action
  • ACTION_DIAL - Opens the dialer or phone app.
  • ACTION_CALL - Places a phone call (requires the CALL_PHONE permission)
Data URI Scheme
  • tel:<phone-number>
  • voicemail:<phone-number>
MIME Type
None

Valid telephone numbers are those defined in the IETF RFC 3966. Valid examples include the following:

  • tel:2125551212
  • tel:(212) 555 1212

The Phone's dialer is good at normalizing schemes, such as telephone numbers. So the scheme described isn't strictly required in the Uri.parse() method. However, if you have not tried a scheme or are unsure whether it can be handled, use the Uri.fromParts() method instead.

Example intent:

public void dialPhoneNumber(String phoneNumber) {
    Intent intent = new Intent(Intent.ACTION_DIAL);
    intent.setData(Uri.parse("tel:" + phoneNumber));
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Search using a specific app

Google Now

  • "search for cat videos on myvideoapp"

Video

Voice search in your app

To support search within the context of your app, declare an intent filter in your app with the SEARCH_ACTION action, as shown in the example intent filter below.

Action
"com.google.android.gms.actions.SEARCH_ACTION"
Support search queries from Google Now.
Extras
QUERY
A string that contains the search query.

Example intent filter:

<activity android:name=".SearchActivity">
    <intent-filter>
        <action android:name="com.google.android.gms.actions.SEARCH_ACTION"/>
        <category android:name="android.intent.category.DEFAULT"/>
    </intent-filter>
</activity>

Perform a web search

To initiate a web search, use the ACTION_WEB_SEARCH action and specify the search string in the SearchManager.QUERY extra.

Action
ACTION_WEB_SEARCH
Data URI Scheme
None
MIME Type
None
Extras
SearchManager.QUERY
The search string.

Example intent:

public void searchWeb(String query) {
    Intent intent = new Intent(Intent.ACTION_SEARCH);
    intent.putExtra(SearchManager.QUERY, query);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Settings

Open a specific section of Settings

To open a screen in the system settings when your app requires the user to change something, use one of the following intent actions to open the settings screen respective to the action name.

Action
ACTION_SETTINGS
ACTION_WIRELESS_SETTINGS
ACTION_AIRPLANE_MODE_SETTINGS
ACTION_WIFI_SETTINGS
ACTION_APN_SETTINGS
ACTION_BLUETOOTH_SETTINGS
ACTION_DATE_SETTINGS
ACTION_LOCALE_SETTINGS
ACTION_INPUT_METHOD_SETTINGS
ACTION_DISPLAY_SETTINGS
ACTION_SECURITY_SETTINGS
ACTION_LOCATION_SOURCE_SETTINGS
ACTION_INTERNAL_STORAGE_SETTINGS
ACTION_MEMORY_CARD_SETTINGS

See the Settings documentation for additional settings screens that are available.

Data URI Scheme
None
MIME Type
None

Example intent:

public void openWifiSettings() {
    Intent intent = new Intent(Intent.ACTION_WIFI_SETTINGS);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Text Messaging

Compose an SMS/MMS message with attachment

To initiate an SMS or MMS text message, use one of the intent actions below and specify message details such as the phone number, subject, and message body using the extra keys listed below.

Action
ACTION_SENDTO or
ACTION_SEND or
ACTION_SEND_MULTIPLE
Data URI Scheme
sms:<phone_number>
smsto:<phone_number>
mms:<phone_number>
mmsto:<phone_number>

Each of these schemes are handled the same.

MIME Type
PLAIN_TEXT_TYPE ("text/plain")
"image/*"
"video/*"
Extras
"subject"
A string for the message subject (usually for MMS only).
"sms_body"
A string for the text message.
EXTRA_STREAM
A Uri pointing to the image or video to attach. If using the ACTION_SEND_MULTIPLE action, this extra should be an ArrayList of Uris pointing to the images/videos to attach.

Example intent:

public void composeMmsMessage(String message, Uri attachment) {
    Intent intent = new Intent(Intent.ACTION_SENDTO);
    intent.setType(HTTP.PLAIN_TEXT_TYPE);
    intent.putExtra("sms_body", message);
    intent.putExtra(Intent.EXTRA_STREAM, attachment);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

If you want to ensure that your intent is handled only by a text messaging app (and not other email or social apps), then use the ACTION_SENDTO action and include the "smsto:" data scheme. For example:

public void composeMmsMessage(String message, Uri attachment) {
    Intent intent = new Intent(Intent.ACTION_SEND);
    intent.setData(Uri.parse("smsto:"));  // This ensures only SMS apps respond
    intent.putExtra("sms_body", message);
    intent.putExtra(Intent.EXTRA_STREAM, attachment);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="android.intent.action.SEND" />
        <data android:type="text/plain" />
        <data android:type="image/*" />
        <category android:name="android.intent.category.DEFAULT" />
    </intent-filter>
</activity>

Note: If you're developing an SMS/MMS messaging app, you must implement intent filters for several additional actions in order to be available as the default SMS app on Android 4.4 and higher. For more information, see the documentation at Telephony.

Web Browser

Load a web URL

Google Now

  • "open example.com"

To open a web page, use the ACTION_VIEW action and specify the web URL in the intent data.

Action
ACTION_VIEW
Data URI Scheme
http:<URL>
https:<URL>
MIME Type
PLAIN_TEXT_TYPE ("text/plain")
"text/html"
"application/xhtml+xml"
"application/vnd.wap.xhtml+xml"

Example intent:

public void openWebPage(String url) {
    Uri webpage = Uri.parse(url);
    Intent intent = new Intent(Intent.ACTION_VIEW, webpage);
    if (intent.resolveActivity(getPackageManager()) != null) {
        startActivity(intent);
    }
}

Example intent filter:

<activity ...>
    <intent-filter>
        <action android:name="android.intent.action.VIEW" />
        <!-- Include the host attribute if you want your app to respond
             only to URLs with your app's domain. -->
        <data android:scheme="http" android:host="www.example.com" />
        <category android:name="android.intent.category.DEFAULT" />
        <!-- The BROWSABLE category is required to get links from web pages. -->
        <category android:name="android.intent.category.BROWSABLE" />
    </intent-filter>
</activity>

Tip: If your Android app provides functionality similar to your web site, include an intent filter for URLs that point to your web site. Then, if users have your app installed, links from emails or other web pages pointing to your web site open your Android app instead of your web page.

Verify Intents with the Android Debug Bridge

To verify that your app responds to the intents that you want to support, you can use the adb tool to fire specific intents:

  1. Set up an Android device for development, or use a virtual device.
  2. Install a version of your app that handles the intents you want to support.
  3. Fire an intent using adb:
    adb shell am start -a <ACTION> -t <MIME_TYPE> -d <DATA> \
      -e <EXTRA_NAME> <EXTRA_VALUE> -n <ACTIVITY>


    For example:

    adb shell am start -a android.intent.action.DIAL \
      -d tel:555-5555 -n org.example.MyApp/.MyActivity

  4. If you defined the required intent filters, your app should handle the intent.

For more information, see Using activity manager (am).

Intents Fired by Google Now

Google Now recognizes many voice commands and fires intents for them. As such, users may launch your app with a Google Now voice command if your app declares the corresponding intent filter. For example, if your app can set an alarm and you add the corresponding intent filter to your manifest file, Google Now lets users choose your app when they request to set an alarm, as shown in figure 1.

Figure 1. Google Now lets users choose from installed apps that support a given action.

Google Now recognizes voice commands for the actions listed in table 1. For more information about declaring each intent filter, click on the action description.

Table 1. Voice commands recognized by Google Now (Google Search app v3.6).

Category Details and Examples Action Name
Alarm

Set alarm

  • "set an alarm for 7 am"
AlarmClock.ACTION_SET_ALARM

Set timer

  • "set a timer for 5 minutes"
AlarmClock.ACTION_SET_TIMER
Communication

Call a number

  • "call 555-5555"
  • "call bob"
  • "call voicemail"
Intent.ACTION_CALL
Fitness

Start/stop a bike ride

  • "start cycling"
  • "start my bike ride"
  • "stop cycling"
FitnessIntents.ACTION_TRACK

Start/stop a run

  • "track my run"
  • "start running"
  • "stop running"
FitnessIntents.ACTION_TRACK

Start/stop a workout

  • "start a workout"
  • "track my workout"
  • "stop workout"
FitnessIntents.ACTION_TRACK

Show heart rate

  • "what's my heart rate"
  • "what's my bpm"
FitnessIntents.ACTION_VIEW

Show step count

  • "how many steps have I taken"
  • "what's my step count"
FitnessIntents.ACTION_VIEW
Local

Book a car

  • "call me a car"
  • "book me a taxi"
ReserveIntents
.ACTION_RESERVE_TAXI_RESERVATION
Media

Play music from search

  • "play michael jackson billie jean"
MediaStore
.INTENT_ACTION_MEDIA_PLAY_FROM_SEARCH

Take a picture

  • "take a picture"
MediaStore
.INTENT_ACTION_STILL_IMAGE_CAMERA

Record a video

  • "record a video"
MediaStore
.INTENT_ACTION_VIDEO_CAMERA
Search

Search using a specific app

  • "search for cat videos
    on myvideoapp"
"com.google.android.gms.actions
.SEARCH_ACTION"
Web browser

Open URL

  • "open example.com"
Intent.ACTION_VIEW
